AMD CPU CCD Percentage use

[nyessien]

Hi there. Is there a way to show CCD usage in percentage instead of all the cores? I mean CCD1 50% and CCD 2%, especially when playing a game, because total CPU usage does not show the full picture. Total CPU usage is accurate, but I want to know when a game is not using the die with the 3D cache. Or am I missing something?



[Martin]

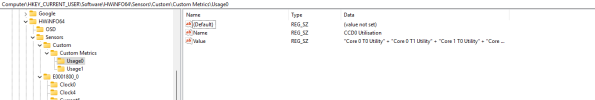

You can achieve this by creating a custom sensor:

Thread 'Custom user sensors in HWiNFO'

Jul 31, 2019

HWiNFO since version 6.10 introduces a new feature - ability to display custom user sensors in the sensors window.
This feature allows users with basic programming skills to show any sensor values. This might be useful in case of custom-made devices, or sensor values not implemented in HWiNFO by default (i.e. clock time).
The interface used to provide data to HWiNFO is Windows Registry. Users wishing to publish data into sensors will need to create a few specific keys and values in the registry.
Format of the required registry is following.

Main registry node for custom sensors must...

• Martin
• Replies: 90
• Forum: 3rd Party Extensions, Plug-ins, Gadgets

•

You will need to combine cores for each respective CCD and calculate their average: sum core usages / number of cores.



[nyessien]

I do not know how to do this
