CPU QDF s-spec string

[Martin]

Thanks for your feedback.



[RolloZ170]

Hi Martin,
sorry to bother you again:
got a very interesting cpu. HWinfo shows QKGG but that must be wrong because its cpuid is 50653
have you the matching q-spec ? QLKH is printed on it, but i looks not like the way Intel does print.
thanks

PIC



[Martin]

Well, this is indeed a very interesting CPU. HWiNFO is misidentifying it as I didn't have any SKUs with CPUID 50653 (stepping B1) listed. QLKH seems correct as it matches the parameters in Intel database. I will add this part into HWiNFO.



[RolloZ170]

I didn't have any SKUs with CPUID 50653 (stepping B1) listed

there are two OEM B1 recognised by HWinfo.
Platinum 8136 SR2YN
Platinum 8124 SR2YS
there is one more to come(on its way to me)
"CPU 0000%@" 24 cores 1,7Ghz base - 3,6Ghz Turbo - 50653(B1) too.



[Martin]

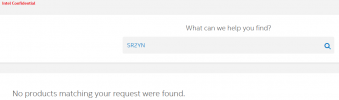

I'm not aware of SR2YN or SR2YS, neither Intel database returns any results for those..



[RolloZ170]

I'm not aware of SR2YN or SR2YS, neither Intel database returns any results for those..

this is a fake screenshot ?

SR2YN



[Martin]

Yes, looks like that. Such a model and SSPEC is not in the HWiNFO database.
I have only now added the first SKX B1 QDFs: QLKH, QLKD. No SSPEC for B1 yet, hence for B1 there were most likely no equivalent model names either, nor the Platinum designation.
Nice fake...



[RolloZ170]

I have only now added the first SKX B1 QDFs: QLKH, QLKD.

GREAT



[Martin]

You bought that one?



[Martin]

This is the superset of ARK listing models that public doesn't see.



[RolloZ170]

You bought that one?

the SR2YN ? no. but there are many myths about the processor, many buyer don't get them to work.
because the microcode 50653 is not supported by standard motherboards.



[Martin]

There is m9750653_01000159.inc



[RolloZ170]

Yes, looks like that. Such a model and SSPEC is not in the HWiNFO database.

this looks more correct.

SR2YN



[RolloZ170]

There is m9750653_01000159.inc

thanks, but i have a modded BIOS for my EPC621D8A which includes the microcode.
If you buy a new mboard, this MC is not included. some TYAN mboard have this MC in stock BIOS.



[Martin]

this looks more correct.

SR2YN

Yes, that looks legitimate. Pretty similar to QLKD. But not sure about the CPUID string seen in CPU-Z.



[RolloZ170]

But not sure about the CPUID string seen in CPU-Z.

it is correct.

P-8136



[Martin]

Interesting, I will need to add this model.



[RolloZ170]

correct now, thanks. the QLKD is coming soon.

QLKH



[RolloZ170]

the 24 Core is labeled as QLKG

QLKG



[Martin]

Thanks, will add that one. Interesting is that this QDF is not even in Intel database.
