Legion T5-26AMR5 CPU and chassis fan readings swapped

[carat2651]

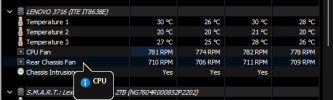

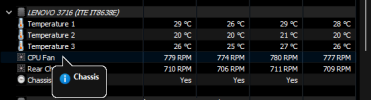

Hi, had to rename fans on Lenovo T5-26AMR5 90RC01JVGE desktop:

• Chassis -> CPU Fan (CPU1_FAN connector on the mobo)
• CPU -> Rear Chassis Fan (rear fan connected by default to SYS_FAN connector on the mobo, which is closest to the case rear)

Initially saw that "Chassis" fan was spinning faster than "CPU", which is usually not the case.

Verified by physically stopping fans with finger and comparing the repored speeds

Thank you!

P.S. Front fan isn't detected at all, though I am not sure it's reported by ITE; the mobo features plenty of fan connectors (see layout.pdf).



[Martin]

I will swap names of those fans, but can you please attach another Debug File that will also contain sensor data?



[carat2651]

Sure, please find attached.



[Martin]

Thanks. I will try to add reporting of more fans in the next build.
