Wrong clock speeds & utilization on my Ryzen 9 7950x

[KeksMember]

Good evening, ever since I have built this PC I couldn't get HWiNFO to show the right clock speeds and utilization values when compared to Ryzen Master or other measurement applications. I am
currently running the latest 64x version of HWiNFO. I have to note it's only the CPU values that are affected and everything else is running appropriately.
Specs:

CPU: AMD Ryzen 9 7950x
RAM: Kingston Fury Renegade DDR5 6000MT CL32
Motherboard: AsRock Taichi Carrara x670e
GPU: Nvidia GeForce RTX 2060 Super

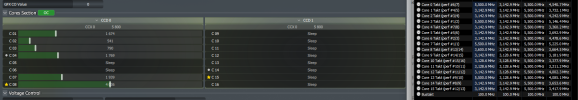

Here is a little showcase of my values:

And heres a screenshot of my utilization values, some, for example, the core 7 threads are correct but otherwhise they aren't lining up.



[Martin]

You need to compare the "Effective Clock" and "CPU Utility" in HWiNFO with RyzenMaster and Task Manager.
Also when the clock/usage varies a lot you'll never be able to get the exact same data across different tools due to different sampling time.

FEATURE - Effective clock vs instant (discrete) clock

It has become a common practice for several years to report instant (discrete) clock values for CPUs. This method is based on knowledge of the actual bus clock (BCLK) and sampling of core ratios at specific time points. The resulting clock is then a simple result of ratio * BCLK. Such approach...

www.hwinfo.com
