Missing some SYS_FAN_PUMP Sensors

[Amasov]

Hi Martin,
hopefully the correct ones. 4952 was running with same options as the first one in foreground and I made another debug-save.



[Martin]

Thank you! Was any of the missing fans present and spinning when you created the dumps? If not, please repeat the FC010000 dump when it's spinning.
Also a dump of FE010000 might be useful.



[Amasov]

All Fans are spinning (now) around 900RPM, maybe around 1.2k while the dump-files creation. The AIO-Pump is present at the (missing) SYS_FAN7_PUMP, the missing SYS_FAN8_PUMP is a fan in front, so I checked physically. There is no shutoff or Fan-Stop configured.

Yes, they were all present and spinning. Today morning I adjusted only the fan curve (was a little noisy) at BIOS (before the dumps).

Need some dumps anyway ?

//edit
Maybe helpful: I downloaded this AIDA-Stuff this morning and checked there (with Revo Uninstaller Tracker). But obviously the software cannot identify them as well, so I removed it.



[Martin]

Yes, please also attach the FE010000. I'm still unable to properly locate them in the existing dumps



[Amasov]

I wided them out to 3k each. Should I start something before dumping ? Should I install SmartFan6 from GCC ? Or is there a possibility to dump UEFI while in SmartFan6(UEFI) ? Anything else I can do ?



[Amasov]

Sorry, the work today was pretty annoying ..

The missing FE010000 also with 3k length attached.



[Martin]

Thanks! No need to start anything else. Problem is that the data resides somewhere between FC000000 and FF800000 which is a quite large region.
I'm trying to figure out where exactly but the documentation doesn't match what I see in the data from this system. I have also asked GIGABYTE to provide more information so waiting for their response...
The FF and FE regions are empty, so that's out of game. Perhaps if you could create an even larger dump of the FC000000 region (e.g. of size 800000)..



[Amasov]

Okay, no problem



[Amasov]

I think I missed a 0 ... now 800k length attached, sorry ...



[Martin]

Thank you. Unfortunately still no luck on my side and I'm unable to locate registers for those fans.
We'll need to wait for GIGABYTE's response...
Will let you know if there's anything new.



[Amasov]

Thank you very much, Martin.



[Martin]

Update: Finally got information from GIGABYTE, working on this now...



[Martin]

Please try this build and let me know the result: www.hwinfo.com/beta/hwi64_735_4957.zip
A new Debug File from this build will be useful for me to check the details.



[Amasov]

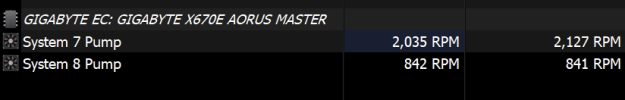

Here they are



Thank you so much for your effort, Martin. I'm really happy right now! You're the best
Attached the Debug-File as well. If I can test something for you, just tell me.



[Martin]

Thanks for the feedback. All seems to work well now, so no need to test anything else
