HWinfo reporting bogus RPM values for Razer PWM fan controller

[jastreb]

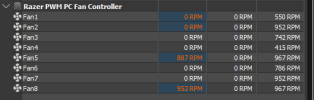

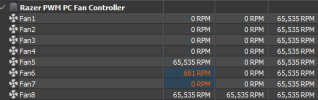

Recently acquired Razer PWM controller and noticed HWinfo is reporting it in Sensors, but values are bogus as you can see from screenshot.

Thought I should report this, even though it does not affect me much.

In case you need logs or any additional info let me know.



[Martin]

Yes, please attach the HWiNFO Debug File for analysis.
Also please tell me which fan you have connected/active.



[jastreb]

Apologies I missed the instructions. Was just generating debug and report files.

Channel 5 and 8 are active, each has 3 chainlinked Lian Li SLV2 140mm fans, so 3 fans per channel.

I use FanControl to control my fans, but readings in HWInfo are bogus with or without FC running. I dont use any plugins regarding HWInfo in FC.



[Martin]

Thank you. Please try this build and let me know the result: www.hwinfo.com/beta/hwi64_823_5676.zip
If there are still any issues, please attach a new DBG file.



[jastreb]

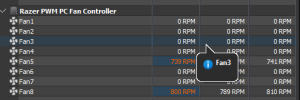

The issue seems to be gone with this version, however with FC running it will report values on unused channels.
Otherwise without FC it reports proper channels readings, so I guess this has nothing to do with HWinfo.

Attaching DBG and report anyways in case its needed.



[Martin]

That's a collision with FanControl, that tool probably doesn't support synchronization mechanisms to work with other tools.



[jastreb]

thank you @Martin for quick fix, I will report issue to FC devs, but might be LHM issue easily too.
